6 digit 7 segment display with super bright color from Asian Electronics, suitable for easy mounting on PC boards or sockets. 0.3 inch seven segment display is designed for applications that require low power consumption. They are tested and selected for the excellent low current characteristics to ensure that the segments are matched at low current.
Features: 6 Digit 7 segment display:
- 0.3 inch 7 segment Display
- Common anode 7 segment display
- Common cathode 7 segment display
- I.C. compatible
- Low Power Consumption
- High Brightness
- RoHS compliant
- Excellent Color and product Uniformity
- Excellent aesthetic look and Character Appearance
- Easy Mounting on PCB or Sockets
- Low Current Operation
- Excellent digit appearance
- Wide viewing angle
Applications: 6 Digit 7 segment display:
- Industrial and instrumental applications
- Digital readout display
- Appliances and White Goods
- Gaming applications
- Home and smart appliances
- Automotive Industry for Dashboard display, fuel gauge
- Test and measurement equipment
- Power converter, the
- TV set-up boxes and gaming machine
- Elevators
- Timer, controller, DPM, counter, etc
- Display time and digital combination
A Seven Segment LED Display is the most basic electronic display device is very commonly used to display numerals from 0-9. The seven-segment display comes in two configurations namely Common Anode and Common Cathode. It can also display Hexadecimal 0~ 9 and A,B,C,D,E,F

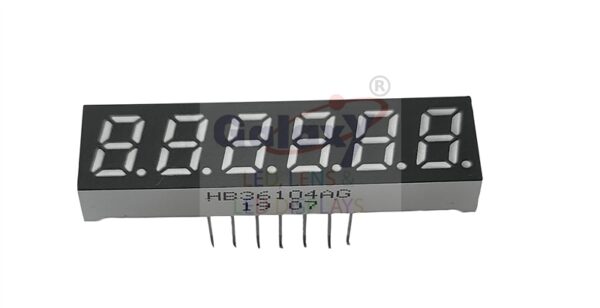

This is a 0.3 inch 6 digit common anode and common cathode 7 segment display. 6 digit seven segment display has a light grey face and white segment. Single, dual, triple, and quad digit displays are available with character heights ranging from 0.28 inch to 12 inches 7 segment display. 0.3 inch Seven Segment Display is available in all colors red, Green, Pure Green, Blue, White, Amber, and Dule color (red and Pure Green) that is made of superior quality materials.
The 7 segment display, also written as “seven segment display”, consists of seven LEDs (hence its name) arranged in a rectangular fashion as shown. Each of the seven LEDs is called a segment because when illuminated the segment forms part of a numerical digit (both Decimal and Hex) to be displayed. The number is displayed by the code or any encoder-decoder IC which gives the command to light LED to make combinations and display numbers.
Seven segment displays are used in many days today’s consumer devices like microwave ovens, washing machines, air conditioners electronics meters, and other electronic devices that display numerical information. They are a simple but effective way to display numerical data like time or quantity. Since they are made out of LEDs, they are a low-cost option for displaying information. They are widely appreciated for their features like accuracy, clarity, and optimum functionality. Asian Electronics seven segment displays are designed for numeric indication on instruments, meters, home appliances, communication, computing equipment, and display panels.
Color Variants: 6 digit 7 segment display 0.3 inch
- Red Seven segment display
- Green Seven segment display
- Pure Green Seven segment display
- Blue Seven segment display
- White Seven segment display
- Dual-color Seven segment display
- Amber Dual Color Red and Green,
- Red and Pure Green, etc…
